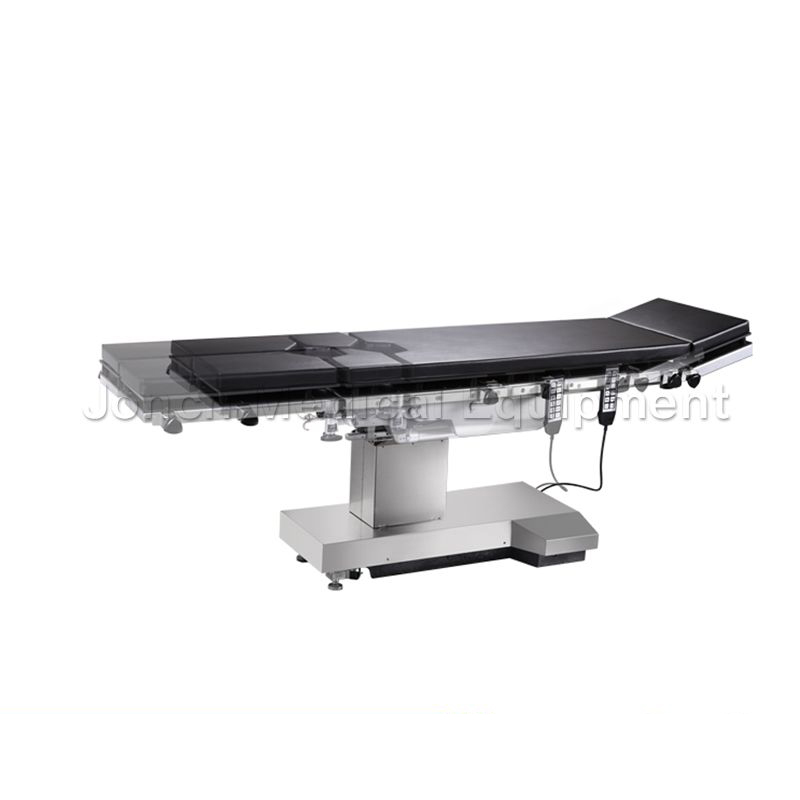

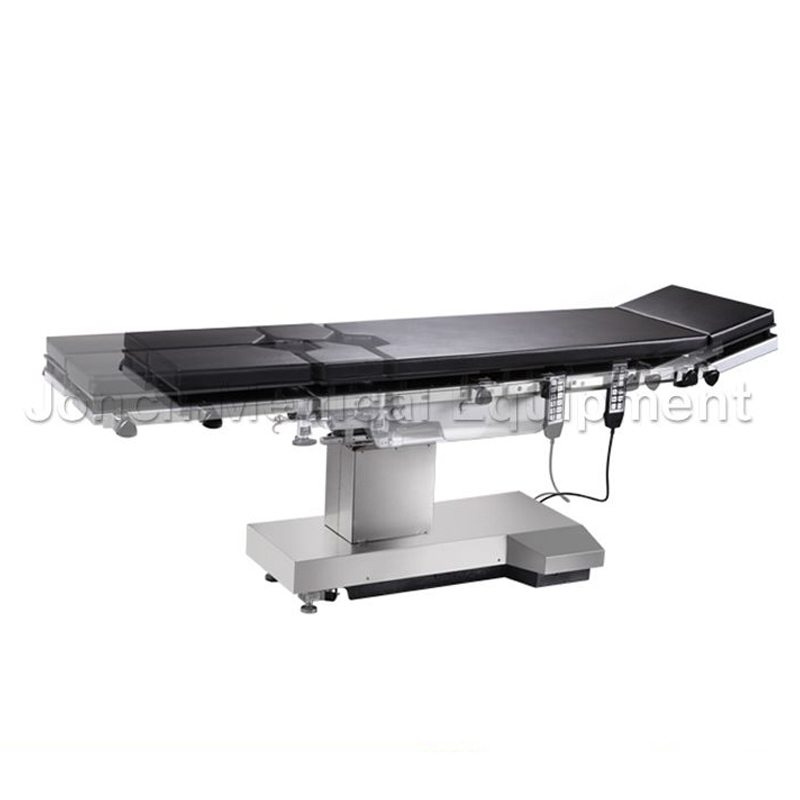

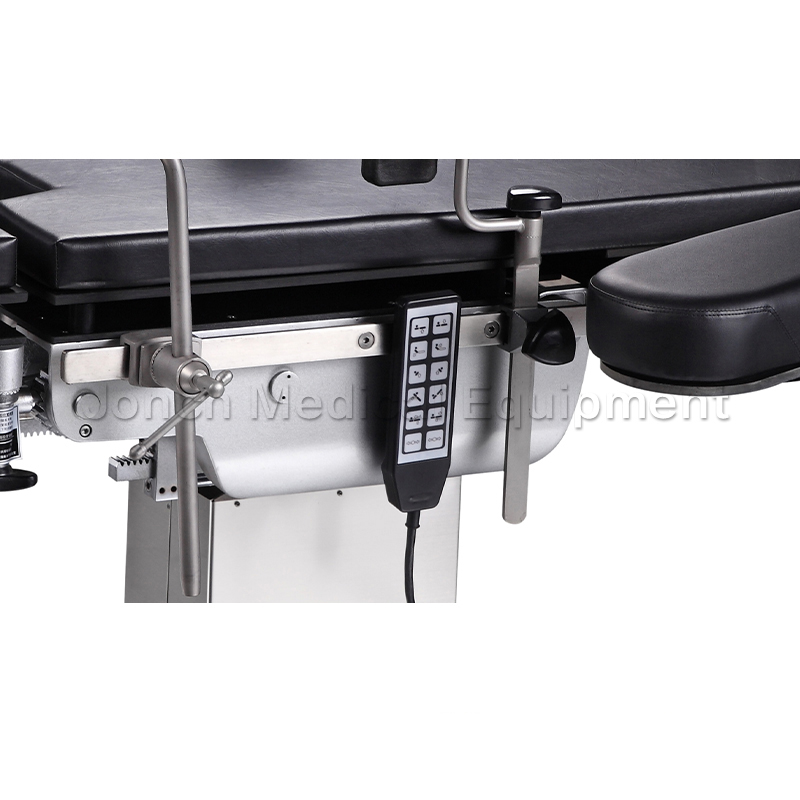

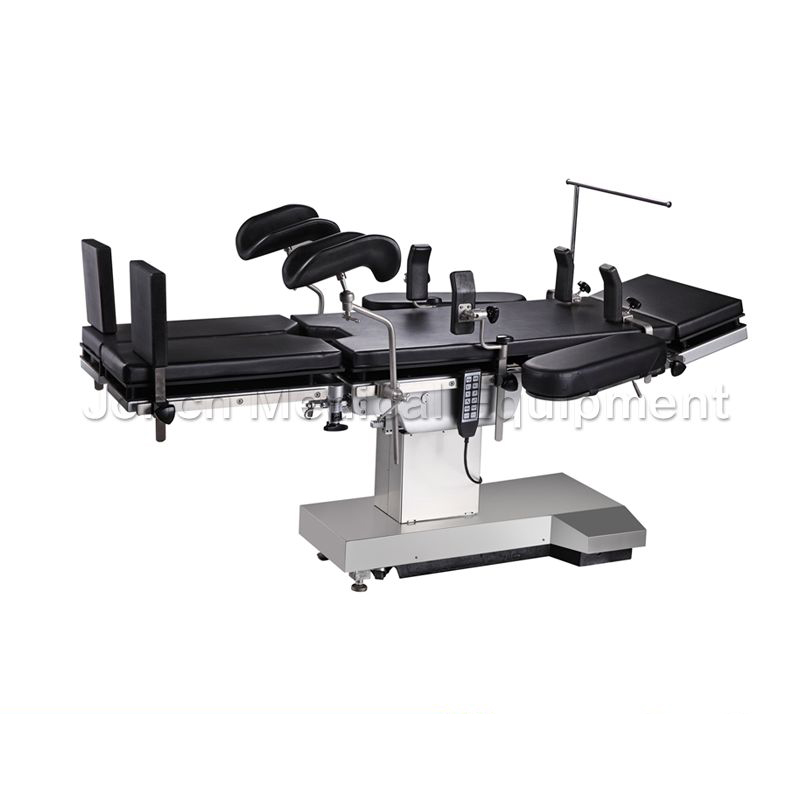

EOT200003 Multi-functional Surgical Operating Table

Multi-functional surgical operating table, a solution designed to meet the diverse needs of modern surgical procedures. With precise Technical Parameters including a length and width of 1960mm and 560mm respectively, this table offers unparalleled flexibility and adaptability in the operating room. Its footplate allows for up to 15° tilt, 90° horizontal positioning, and 90° up/down movement, ensuring patient positioning. The table's elevation ranges from 690mm to 1100mm, while the back plate adjusts from 90° to 40°, providing surgeons with ergonomic control. Additionally, features like Trendelenburg and Reverse Trendelenburg of ≥30°, longitudinal sliding of 300mm, and lateral tilt of 18° in both directions enhance surgical precision. This table is powered by a reliable 220v, 50Hz, 1.0Kw system, with a net weight of 358Kgs and a gross weight of 300Kgs. The package includes essential Technical Configurations such as an Anaesthetic Screen, Body Support, Shoulder Rests, Knee Crutches, Arm Supports, and a Mattress. The optional model EOT200003, a variant of EOT200011, maintains the same technical specifications but excludes the battery and "O" reset function, making it ideal for C-arm and X-ray procedures. With its comprehensive features and advanced functionalities, our Multi-functional Surgical Operating Table ensures surgical outcomes and patient care.

PREV：EOT200002 6-Function Hydraulic Stretcher Trolley with X RayNEXT：EOT200005 Multi-functional Electric Orthopedic Operation Table
Contact Us
EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table
  • EOT200003 Multi-functional Surgical Operating Table

Technical Parameters

Length/Width

1960 mm/560 mm

Footplate(up/down&horizontal positioning)

15°/90°/90°

Elevation (up/down)

690 mm/1100mm

Backplate (up/down)

90°/40°

Trendelenburg

≥30°

Longitudinal Sliding

300 mm

Reverse Trendelenburg

≥30°

Power

220v,50Hz,1.0Kw

Lateral Tilt (left/right)

18°/18°

N.W./G.W.

358/300Kgs

Head Rest (up/down)

40°/90°

Packaging

1300 x 770x1040 mm

Technical Configuration

Anaesthetic Screen

1pc

Body Support

2pcs

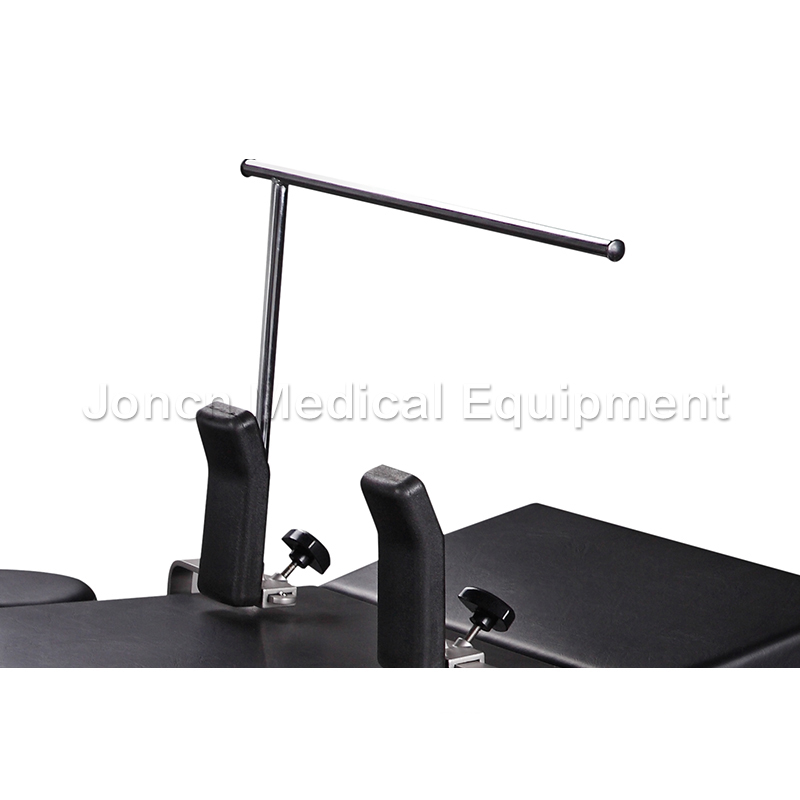

Shoulder Rest

2pcs

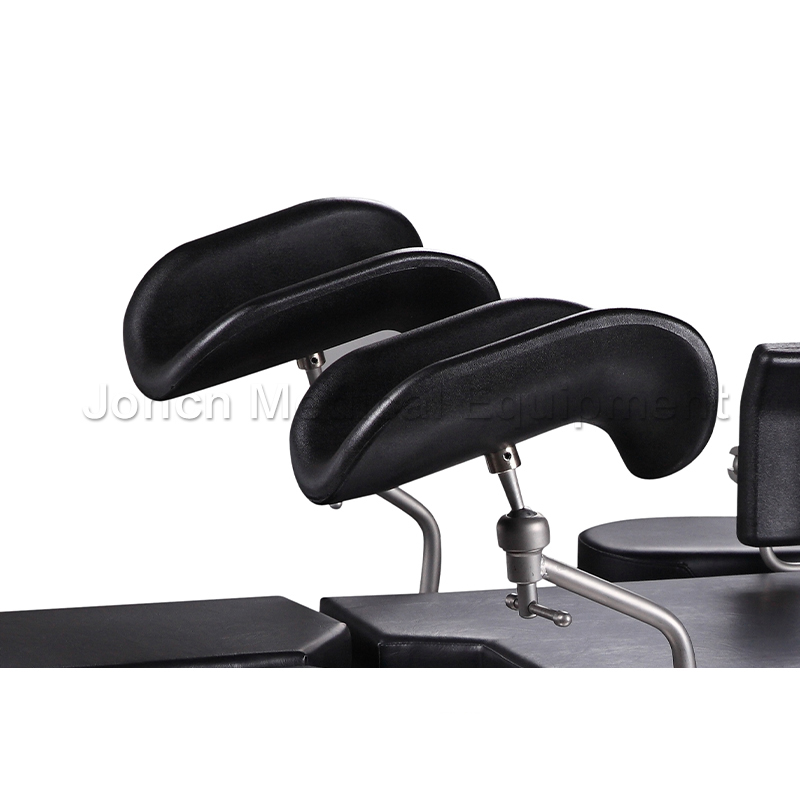

Knee Crutch

2pcs

Arm Support

2pcs

Mattress

1pc
